Scanning product dimensions with the digital measuring tape
The digital tape measure works with a pull-out tape. This tape is printed with QR codes. Each code represents a distance of 5 mm, allowing accurate measurement with an accuracy of 0.5 cm. After pulling out and positioning it along the side of the article to be measured, the built-in 1D, 2D or QR code scanner reads the distance corresponding to the pulled-out length. The same scanner scans the article's product code so that measurement result and product (SKU) are linked. With a maximum length of 7.5 metres, Cubetape's digital measuring tape is also a perfect solution for determining the logistics master data of long goods and ugly's in the range.
Connectivity and data entry in the WMS
The Cubetape comes with three USB options:
- Bluetooth dongle
- USB cable
- USB hub
The measurement software Masterdata Connect runs on a computer, laptop, panel PC, I-pad or tablet. This software allows various digital measuring instruments to work together. For example, the digital measuring tape can be used for additional data to master data collected or to be collected with other manual digital measuring and weighing solutions from the Masterdata Toolkit and with fully automatic dimensioning systems such as the MultiScan, CartonScan and/or ProfileScan. The complete data set per SKU is then entered into the WMS at the touch of a button.
Start the measurement process immediately

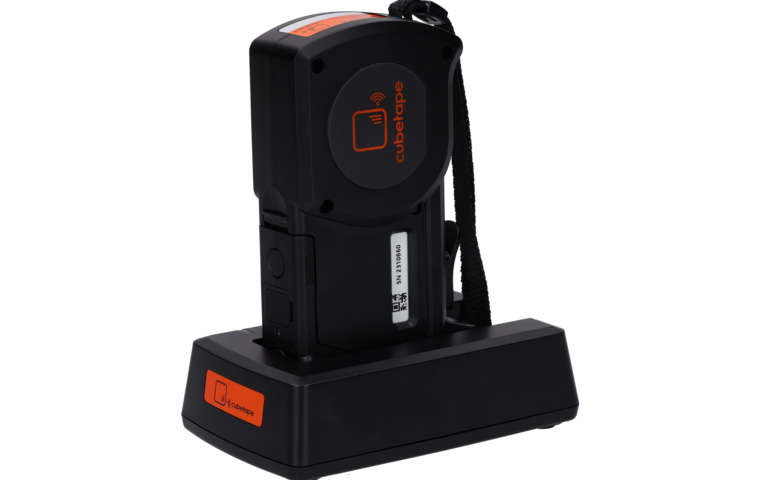

By placing the digital measuring tape back in the supplied cradle after use, it automatically starts charging wirelessly. This way, you always have a charged measuring solution with which you can immediately start the measuring process.
Bluetooth for wireless measuring in the warehouse
The digital measuring tape has a built-in Bluetooth antenna. This ensures that you can measure with an excellent connection even at some distance from the measuring station.
